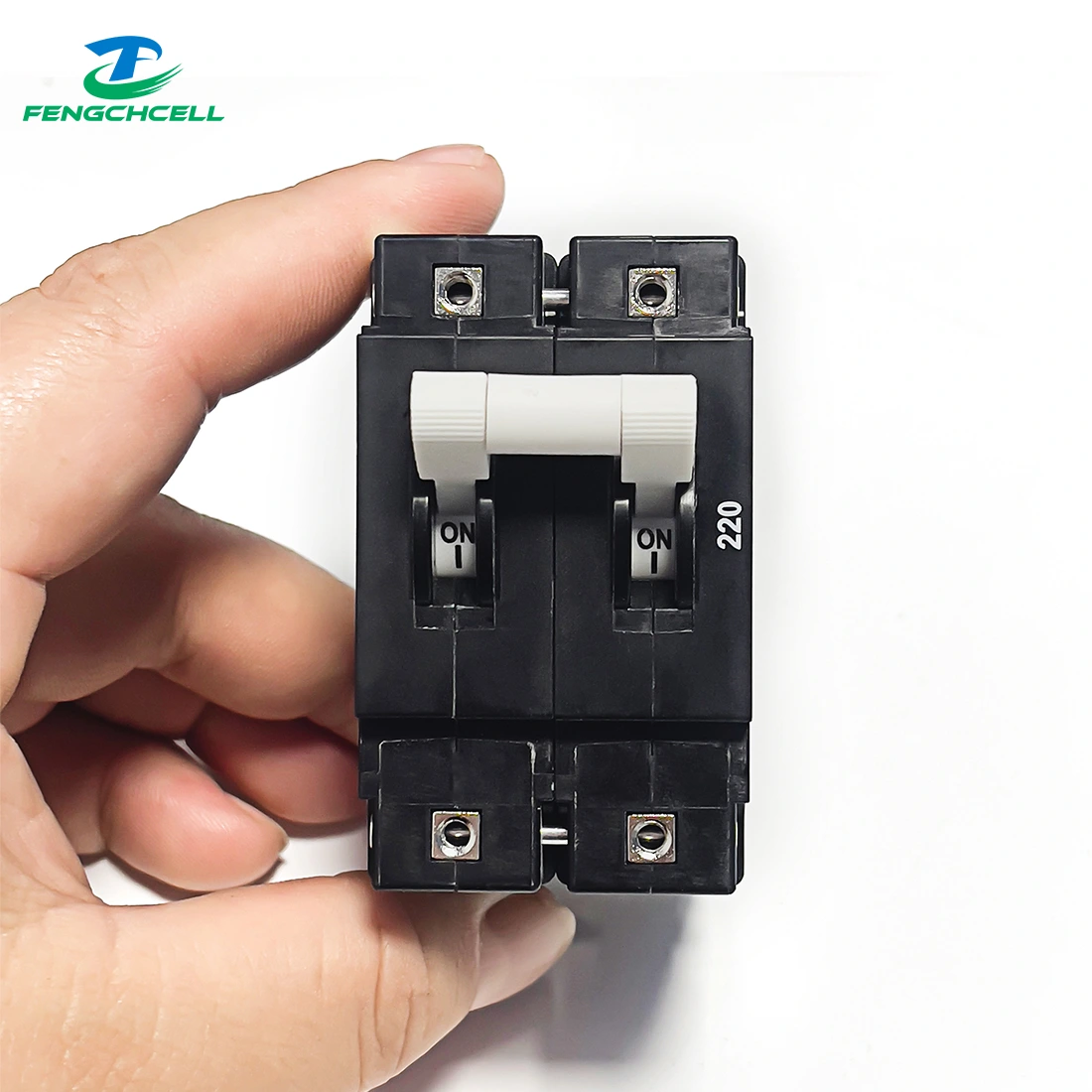

A 220A DC circuit breaker does one job your BMS cannot do on its own: it gives you a physical break in the circuit. Your BMS protects the cells from over-current and short circuits, but when you need to work on the pack, isolate the inverter, or cut the power in an emergency, you need something you can actually switch off. This 2-pole DC breaker sits between your battery and your inverter, adds short-circuit protection on top of the BMS, and gives you a visible disconnect point.

Why a 220A DC Circuit Breaker Beats Relying on the BMS Alone

A BMS is a protection device, not a switch. It will cut the current when something goes wrong, but it will not let you isolate the pack on demand — and it will not clear a hard short circuit on the main DC feed the way a breaker does. Adding a breaker gives you three things a BMS alone cannot:

• A manual disconnect for maintenance, upgrades and emergencies
• Short-circuit clearing rated at 7.5kA
• A fault you can see — a tripped breaker shows you something happened, instead of leaving you guessing

AC breakers do not belong on a battery circuit

This is the mistake that matters most. Alternating current passes through zero 50-60 times a second, and that zero crossing is what lets an AC breaker extinguish the arc when it trips. Direct current has no zero crossing, so the arc keeps burning. An AC breaker can fail to clear a fault on a battery system, which is exactly the situation a breaker is supposed to solve.

What the 220A Rating Means in Practice

The most common configuration in a DIY storage pack is a 200A BMS. This breaker is rated 220A, one step above that, which gives you margin for inrush current without oversizing the device or the cable.

One rule that matters more than the table: never fit a breaker rated below your system’s continuous current, and never fit a cable rated below the breaker.

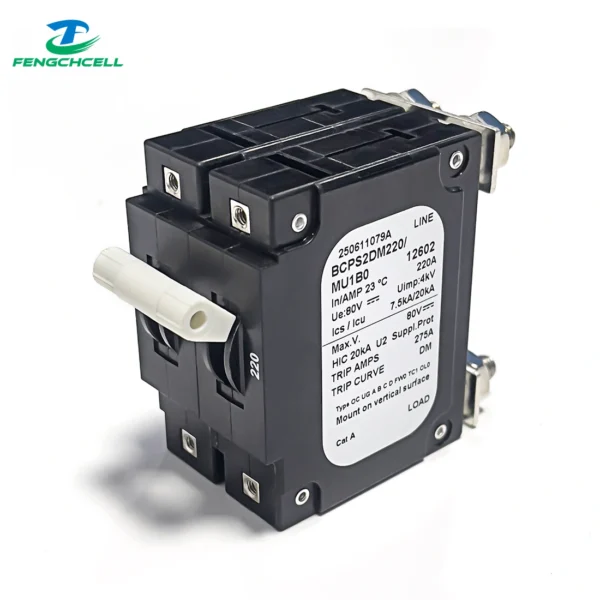

Reading the Label: DC Rating and Breaking Capacity

Fitting a DC Circuit Breaker Into a DIY Battery Box

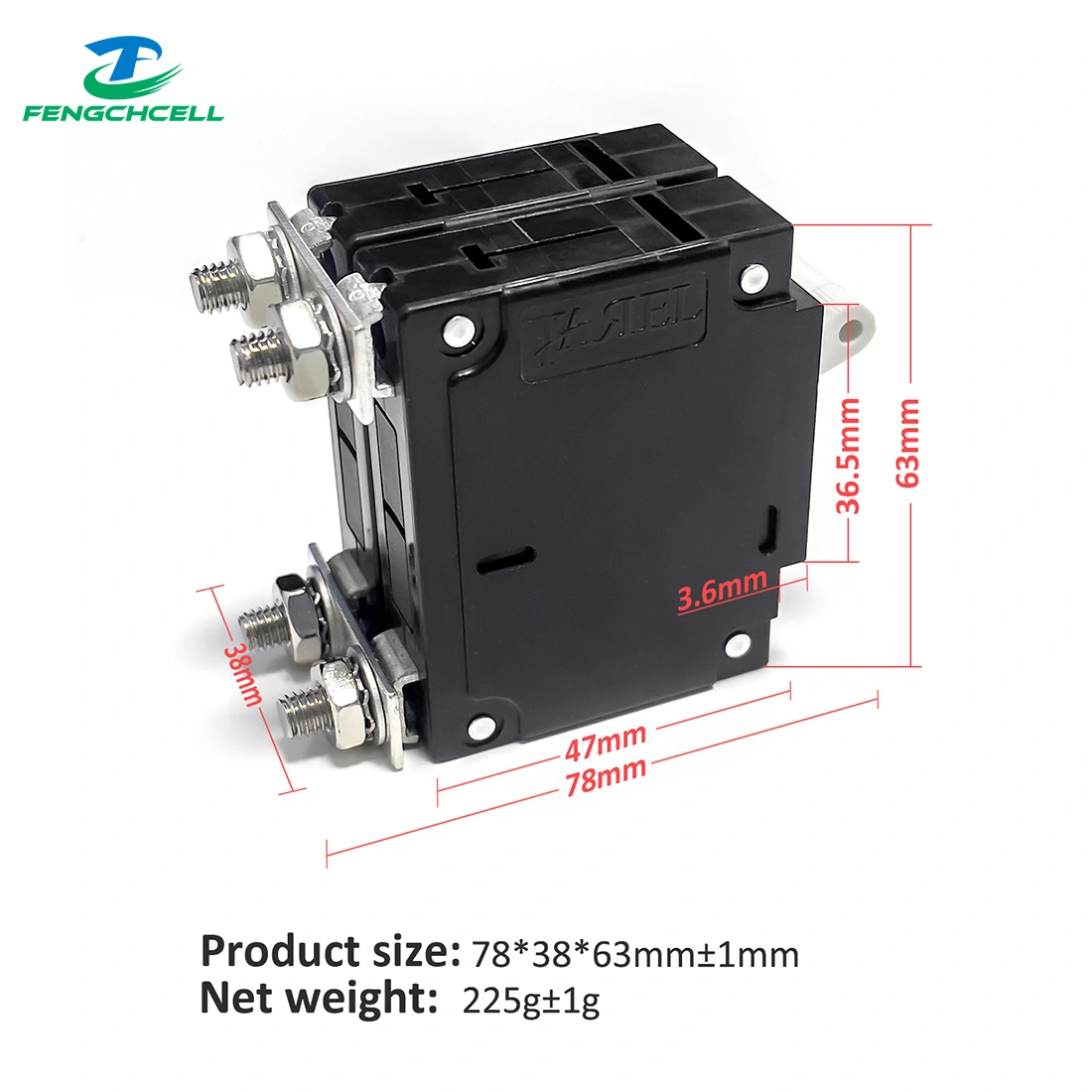

At 78 × 38 × 63mm and 225g, this breaker fits inside a battery enclosure or a tight cabinet instead of needing its own panel.

1. Mount it where you can reach it. A breaker you cannot access is decoration.
2. Follow the LINE and LOAD markings, and confirm the wiring diagram in the manual before connecting.
3. Torque the terminals to spec and re-check after the first thermal cycle.
4. Keep AC and DC separate. This device goes on the DC side between battery and inverter.
5. Leave room for the cables. Thick DC cable needs bend radius.

Specifications
