Vertical DIY Battery Box Kit V3 16S 51.2V 15kWh | JK BMS V19, Wheels, LCD, Fire Protection | EU Stock
DIY battery box kit — battery cells not included. Not a complete battery.
🔋 Vertical DIY Battery Box Kit V3 with JK BMS V19
✅ 16S · 51.2V · 15kWh | Floor-Standing Tower with Wheels
🛡️ Built-in Air Switch, Fire Protection & LCD Display
🔧 Fits 16 × 280-300Ah LiFePO4 cells — cells not included
🔌 Tested with Deye, Growatt, Victron, Pylontech & SRNE
🚚 EU Stock | Poland Warehouse
$468.00
Poland warehouse pickup price. Delivery not included.
Payment Methods:
We accept bulk purchases and customization
Vertical DIY Battery Box Kit V3 16S 51.2V 15kWh | JK BMS V19, Wheels, LCD, Fire Protection | EU Stock

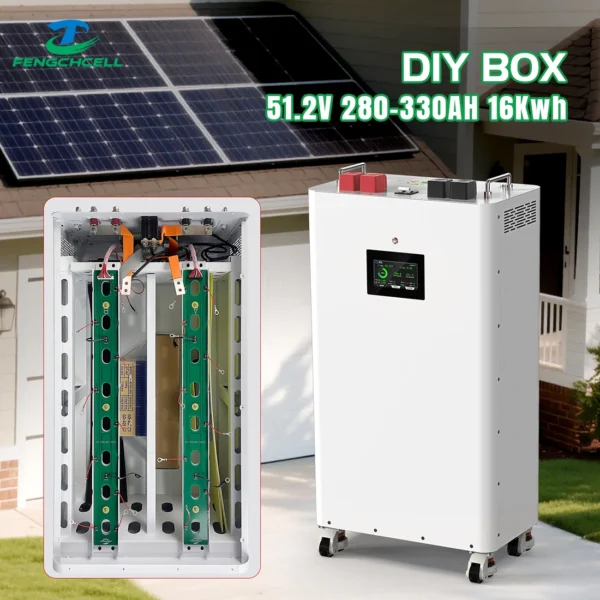

A vertical DIY battery box that stands on its own

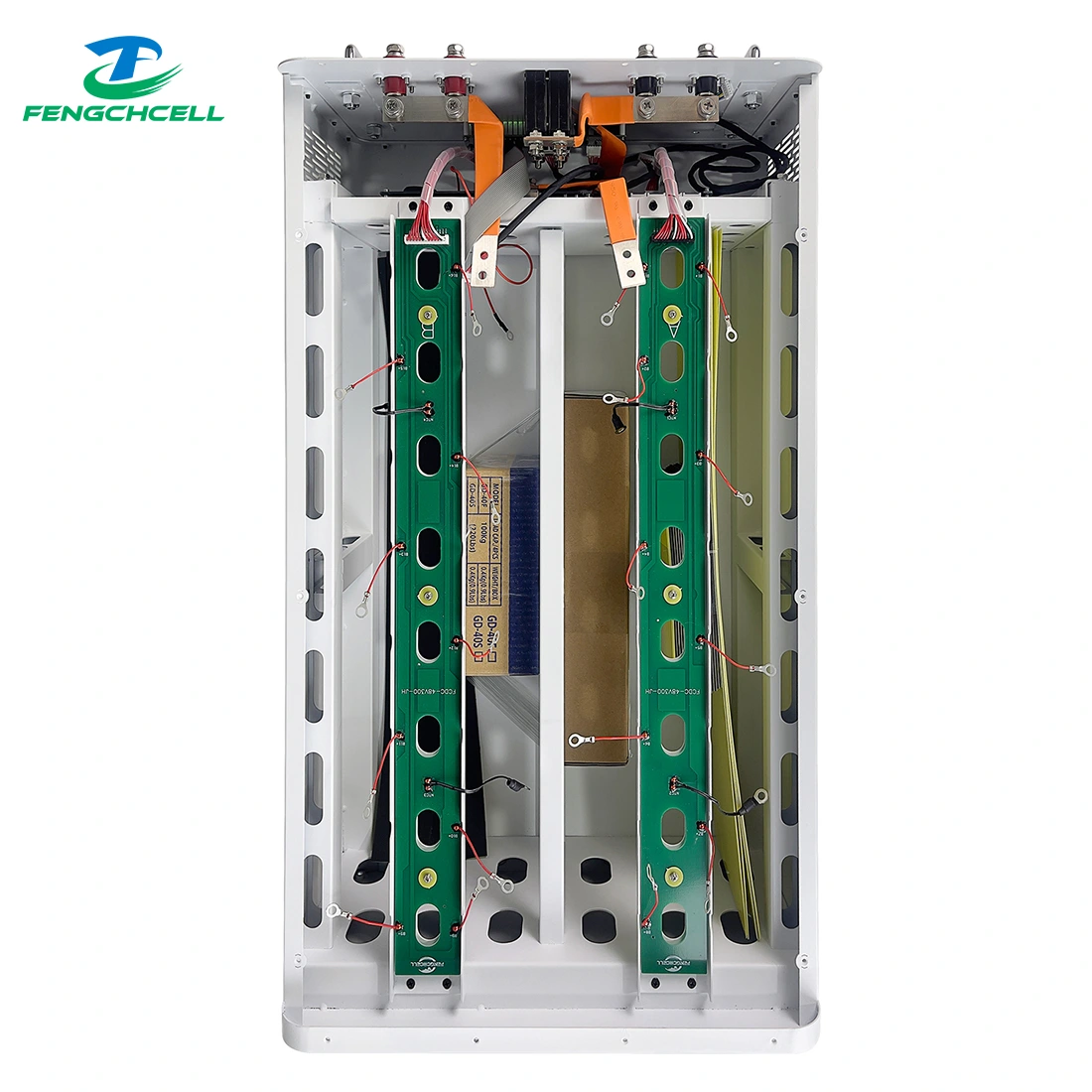

The Vertical DIY battery box kit V3 is a floor-standing 16S tower: 16 prismatic LiFePO₄ cells stand in two columns, the JK V19 BMS is already mounted, and the finished pack rolls into place on its castors. At 51.2V it delivers roughly 14.3kWh with 280Ah cells and 15.4kWh with 300Ah cells — the capacity most European homes actually use.

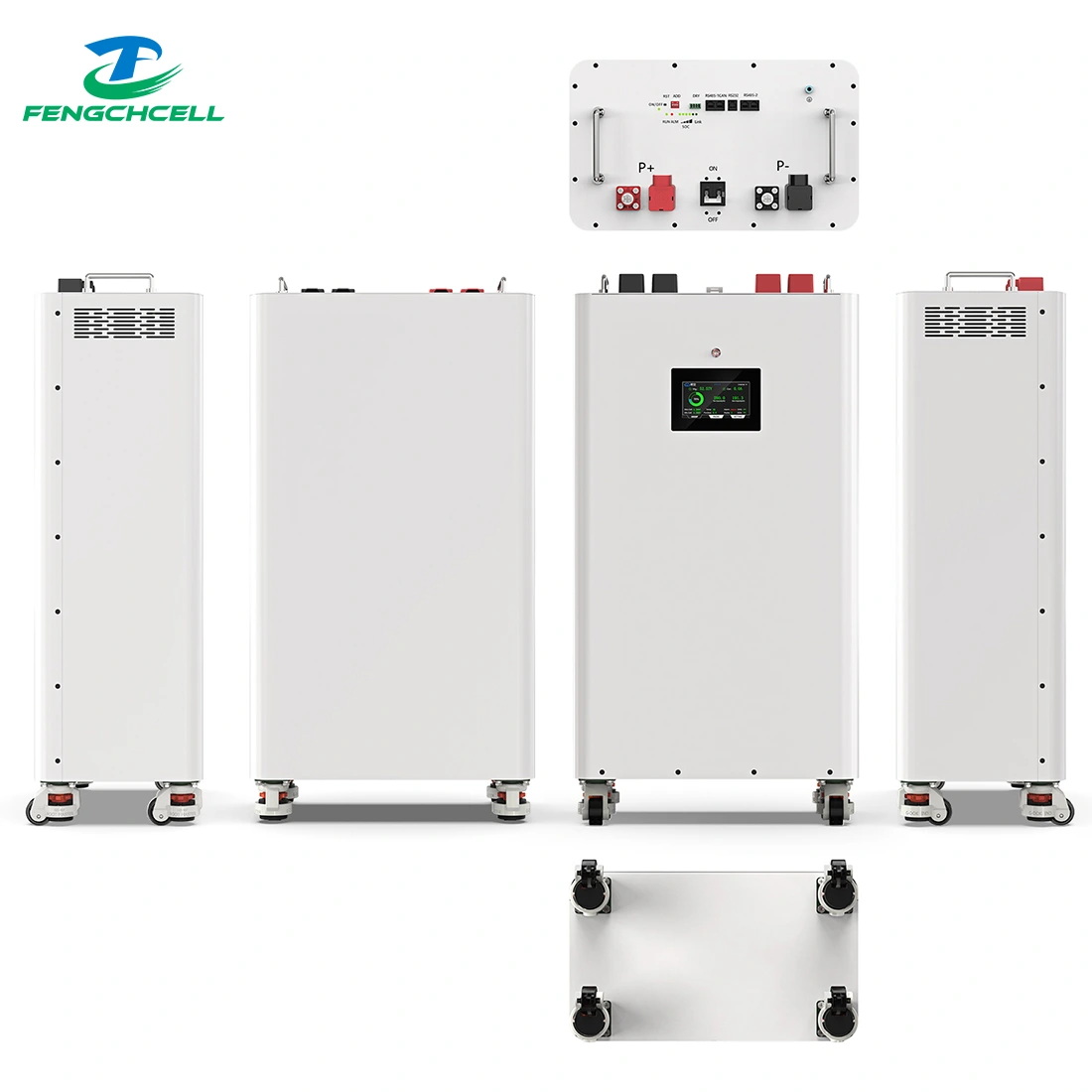

Vertical matters when floor space is the constraint. The tower footprint is a fraction of a horizontal box, the top handles make it easy to lift into position, and the terminals sit on top where cables stay short and tidy.
Safety hardware is already installed

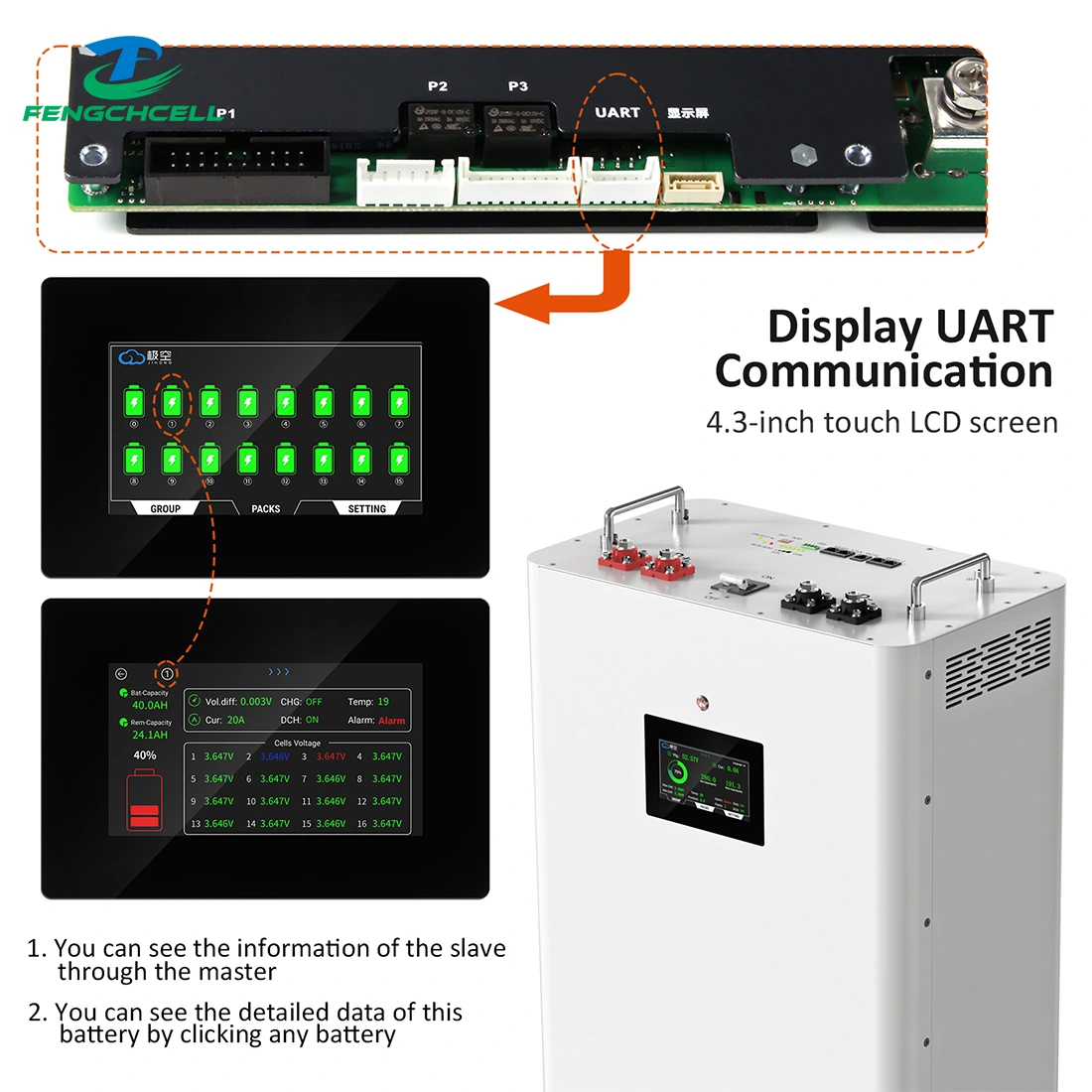

This is not an empty shell. Every V3 ships with the JK V19 BMS (PB series, CAN + RS485) with 2A active balancing, mounted and wired to the busbars; an air switch on the front panel for isolating the pack without tools; a fire protection device inside the enclosure; the new LCD display showing cell voltages, SOC, current and temperature; and Bluetooth for the same data on the JIKONG app.
Inverter compatibility, tested
Deye (LV hybrid CAN V1.0), Growatt (BMS CAN-Bus LV V1.08 and xxSxxP ESS V2.01), Victron (CAN-BUS BMS 201707 via Cerbo GX), GoodWe (LV BMS CAN V1.7), SRNE (PACE Modbus RS485 V1.3), MUST (PV1800F CAN 1.04.04), Luxpowertek, MEGAREVO and Pylontech (CAN V1.2 / RS485 V3.5) are all supported, with Sofar, Solis, Easun, Anenji and Voltronic available on request with the protocol confirmed before you order.

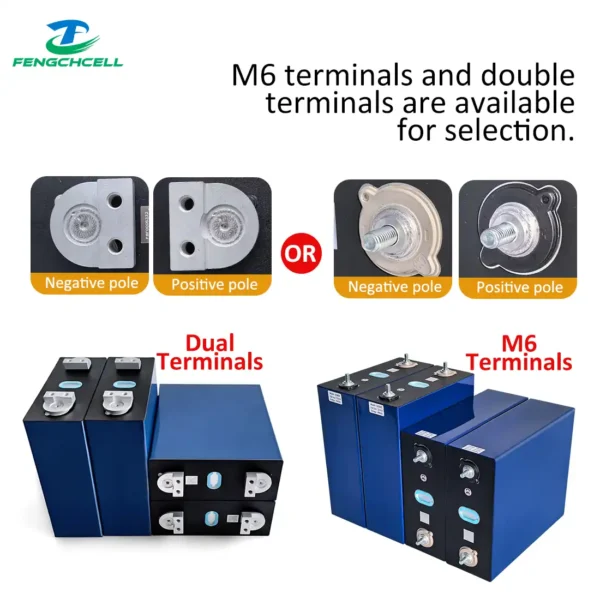

Which Cells Fit the Vertical DIY Battery Box Kit V3
Sixteen prismatic cells, 280Ah to 300Ah, mounted upright in two columns:
| Cells | Approx. capacity |
|---|---|
| 16 × 280Ah | 14.3kWh |
| 16 × 300Ah | 15.4kWh |
Send us your cell datasheet before ordering if you are using a different brand or format.

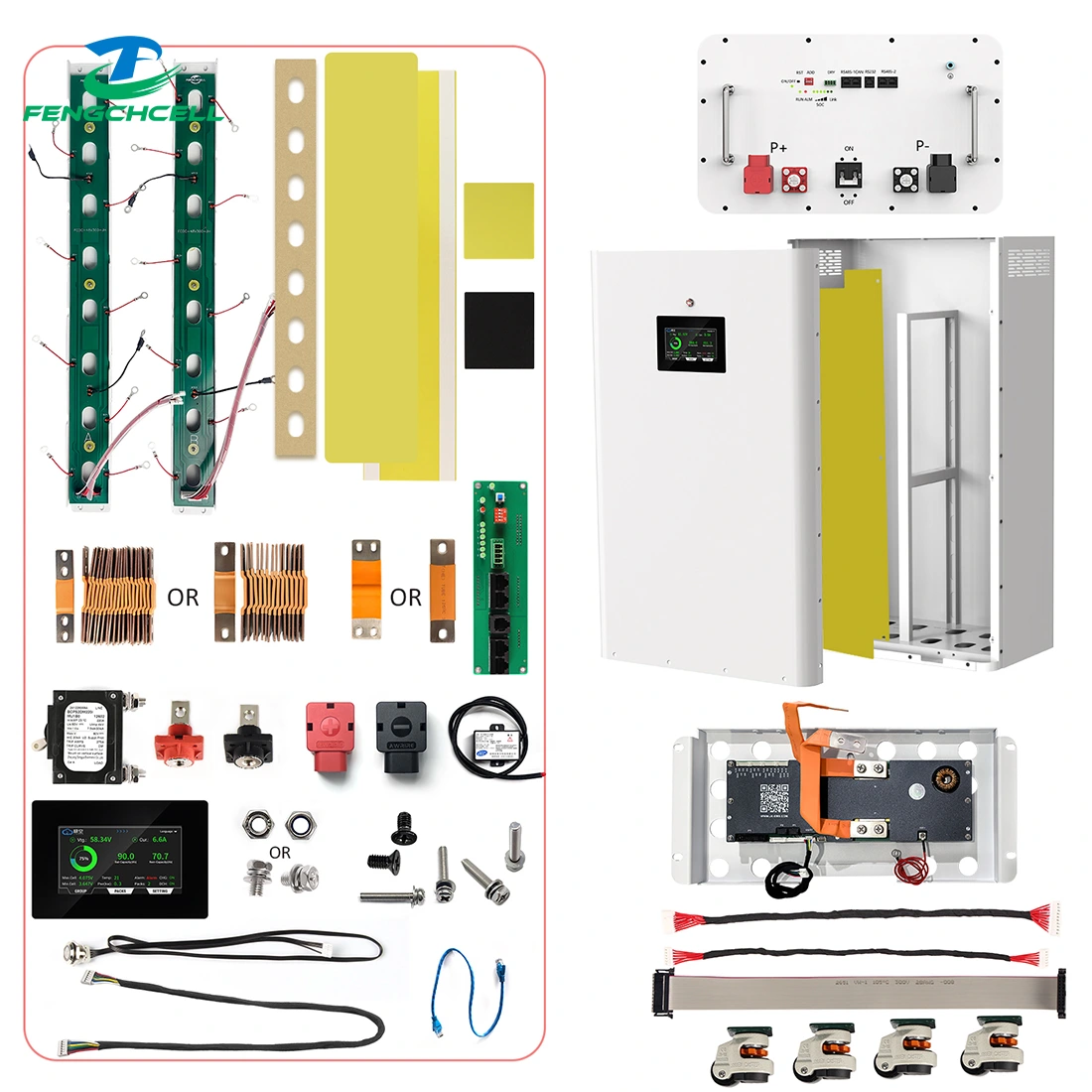

What you receive
Steel tower enclosure with top handles and castors · JK V19 BMS on its mounting tray · LCD display and cable · air switch · fire protection device · cell insulation sheets and spacers · flexible busbars and terminal pair sets · voltage sense harnesses with temperature sensors · communication cables · complete screw and bolt set · illustrated step-by-step assembly manual.
Not included: battery cells. Add 16 prismatic LiFePO₄ cells (280-300Ah) to complete the pack.
Shipped from Poland, DDP
Units are held in our Poland warehouse and delivered DDP across the EU.
